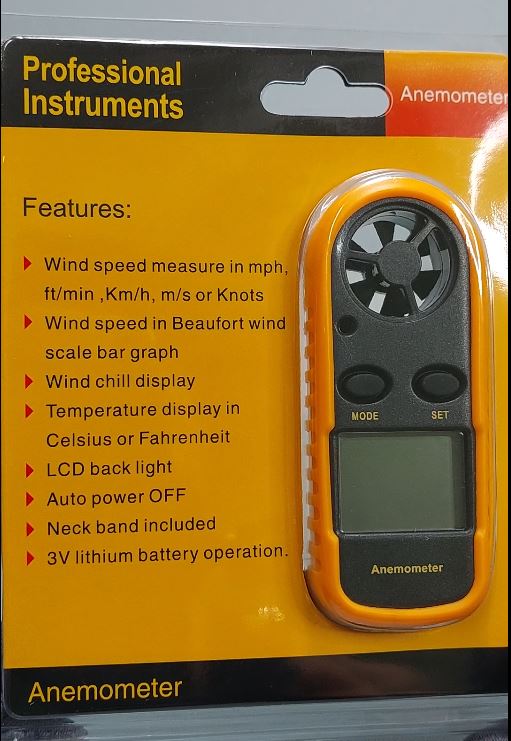

Anemometer Instrument na pwede mo gamitin sa field kung mayroon ka activity sumusukat ito ng hina at lakas ng hangin. Ang karamihan sa gumagamit nito ay mga remote control plane pilot, drone pilot, wind surfing, sailing, palipad ng sarangola at mga bagay na may kinalaman sa pag papalipad.
Front

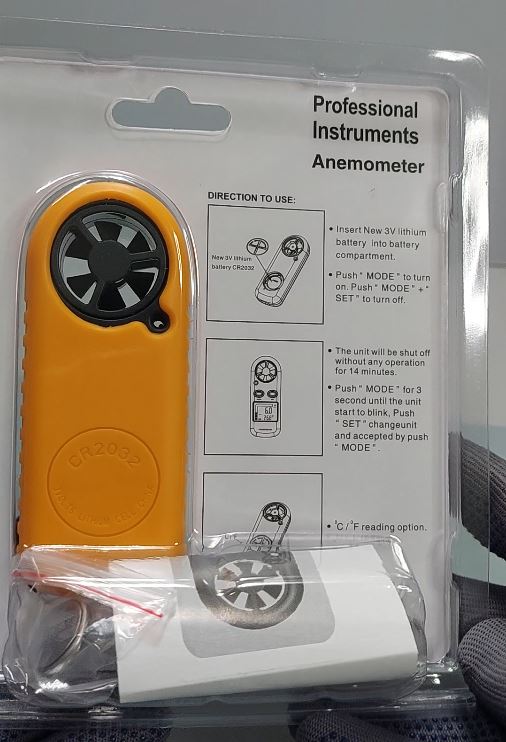

Back
Sa tulong ng instrument na ito madali mong malalaman yung limitasyon sa pag papalipad ng rc plane, drone at iba pa.
Ang materyales na ginamit dito ay abs plastic, rubber at electronic component makikita nyo sa product natin sa itass nito ay ang kayang propeller yan kusa yan iikot pag malakas ang hangin sa baba nito may dalawang rubberized button mode at set sa ilalim ng button mayroon tayo backlight lcd screen dyan mo makikita yung reading ng hangin.

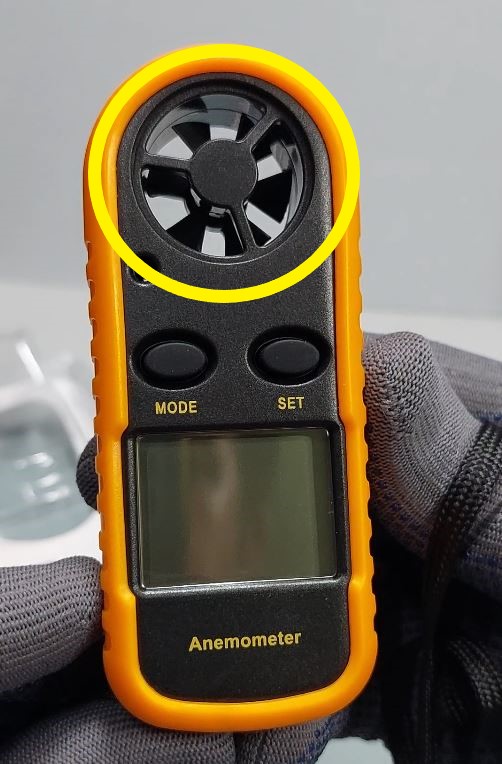

Propeller

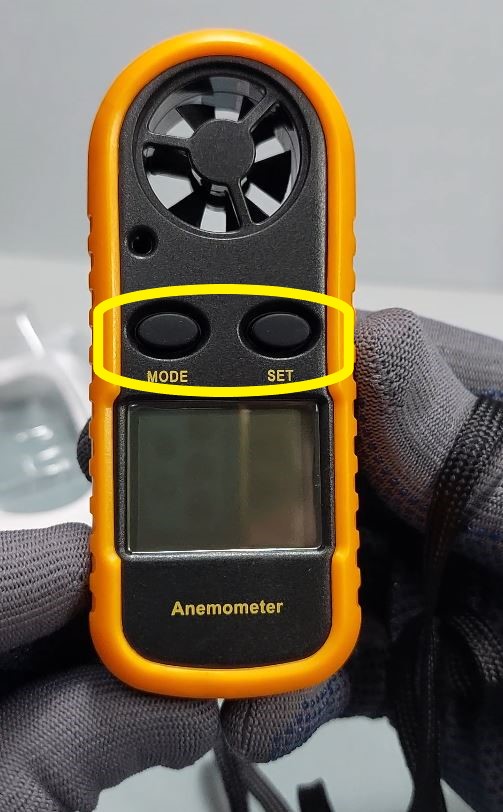

Button

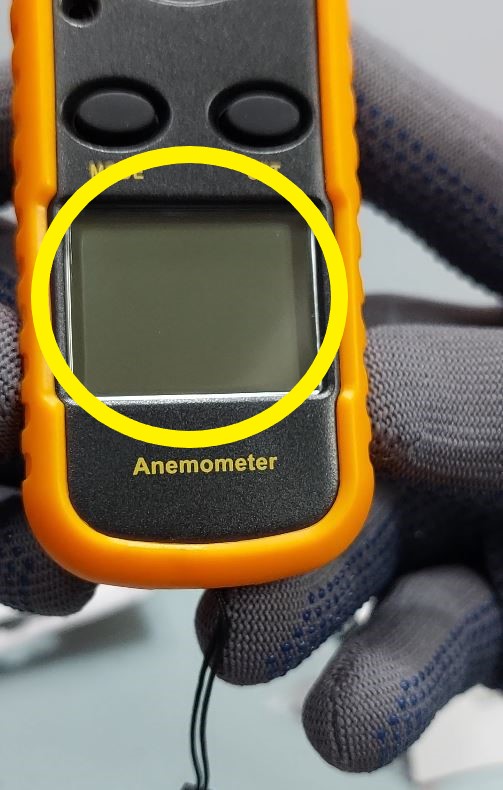

Display
May kasama syang lace at battery yung battery type nito 3v CR2032 kasukat ng barya maliit lang pag mag lalagay ka ng battery nito tangalin mo lang yung yellow cover nya sa gilid makikita mo yung cover ng battery nya sa loob kahit yung manipis barya kaya ng pihitin yung cover nito bago mo ilagay yung battery.

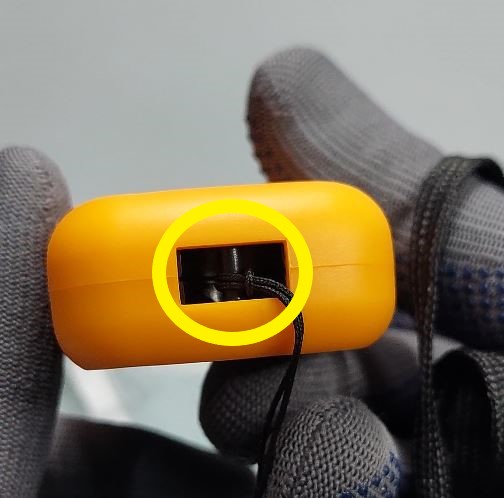

Lace Strap

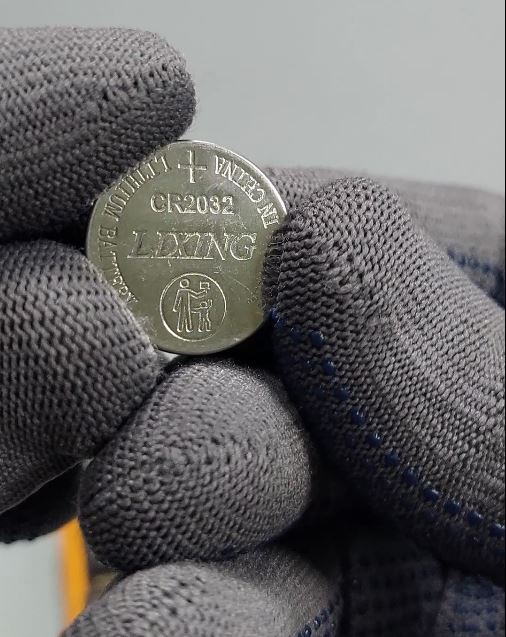

CR2032 Battery
Bukod sa pag sukat sa hangin ng instrument natin mayroon din ito temperature Celsius at Fahrenheit. Maraming unit ang pwede mong gamitin sa air velocity ito ay m/s, km/h, ft/min, knots at mph sa wind chill nya mayroon ito maximum, average at current air velocity makikita mo rin dito sa gilid ng screen ang battery status at beau fort scale.
A. Temperature
B. Air Velocity
Unit | Range | Resolution | Accuracy |
°C | -10 °C ~+ 45 °C | 0.2 | ±2°C |
°F | 14 °F ~ 113 °F | 0.36 | ±3.6°F |
Battery | CR2032 3.0V (Included) |
Thermometer | NTC Thermometer |
Operating Temperature | -10 °C ~+ 45 °C (14 °F ~ 113 °F) |
Operating Humidity | Less than 90%RH |
Store temperature | -40 °C ~+ 60 °C (-40 °F ~ 140 °F) |
Current consumption | Approx. 3mA |
Weight | 52g |
Dimension | 40x18x105mm |

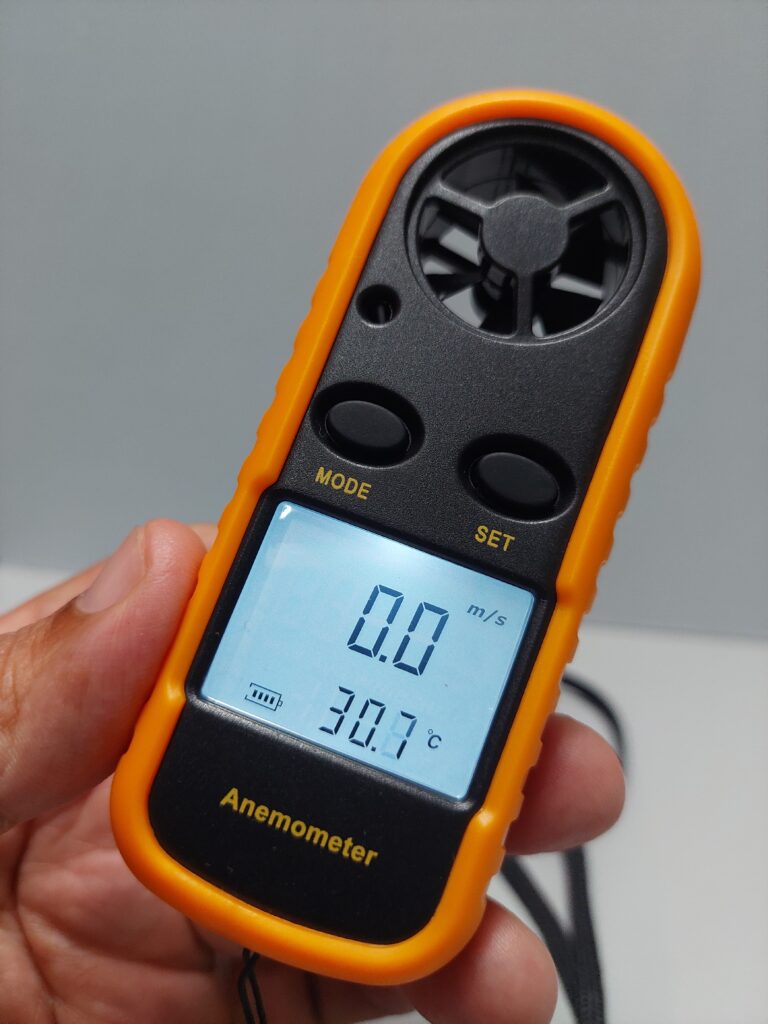

Display Backlight
Unit | Range | Resolution | Threshold | Accuracy |
M/s | 0-30 | 0.1 | 0.1 | ±5% |
Ft/min | 0-5860 | 19 | 39 | ±5% |
Knots | 0-55 | 0.2 | 0.1 | ±5% |
Km/hr | 0-90 | 0.3 | 0.3 | ±5% |
Mph | 0-65 | 0.2 | 0.2 | ±5% |

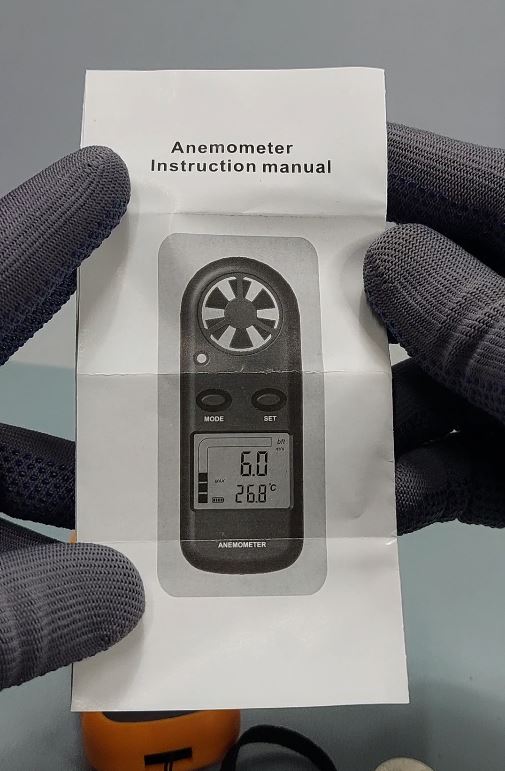

Manual
Yung level ng Beaufort scale ay 1 to 12 pag mataas na beau fort mas malakas na hangin.
Beaufort Scale | Wind Type | Wind Speed |
0 | Calm | 0 m/s |
1 | Light air | 0-2 m/s |
2 | Light breeze | 2-3 m/s |
3 | Gentle breeze | 3-5 m/s |
4 | Moderate breeze | 5-8 m/s |
5 | Fresh breeze | 8-11 m/s |
6 | Strong breeze | 11-14 m/s |
7 | Near gale | 14-17 m/s |
8 | Gale, fresh gale | 17-21 m/s |
9 | Severe gale | 21-24 m/s |
10 | Storm whole gale | 24-28 m/s |
11 | Violent storm | 28-33 m/s |
12 | Hurricane force | ≥33 m/s |
Paano turn-on at turn off ang ating instrument press 2-3 second yung mode button mag-on na sya sa pag off naman nito kailangan sabay mo i-press yung mode at set ng 2-3 second then release off na yan.

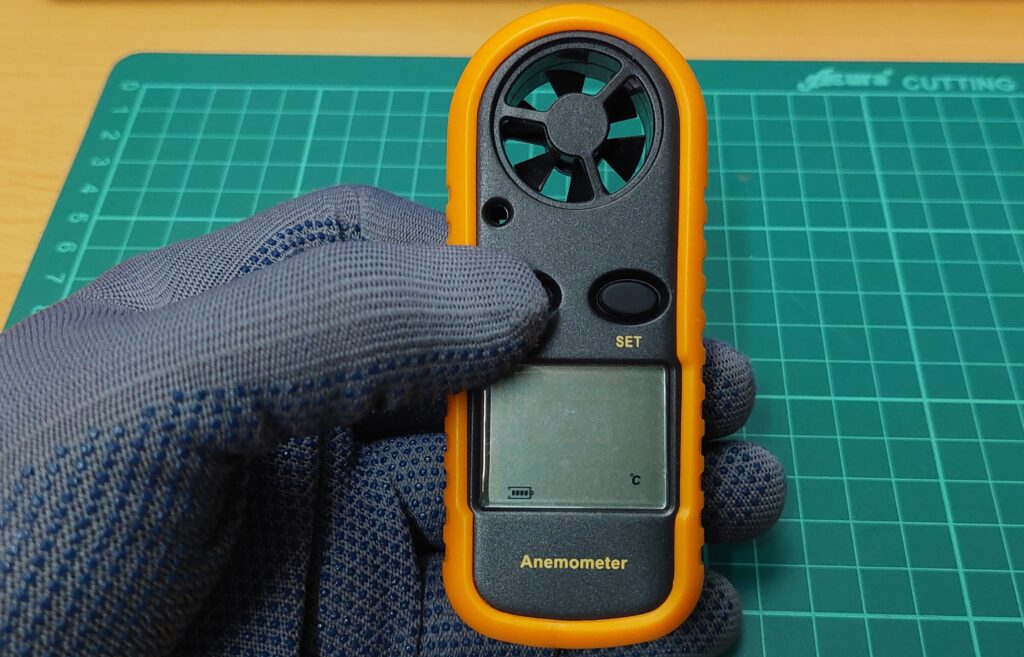

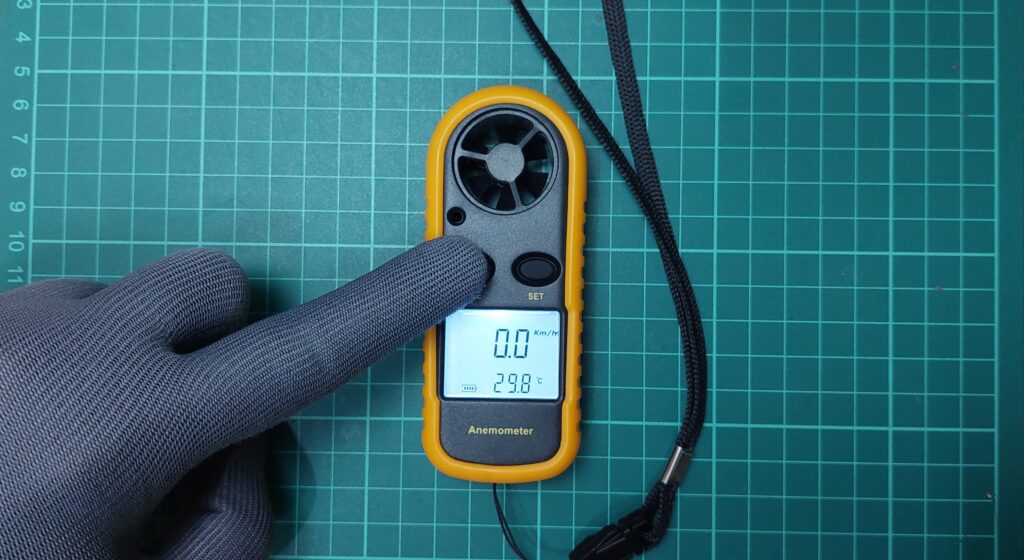

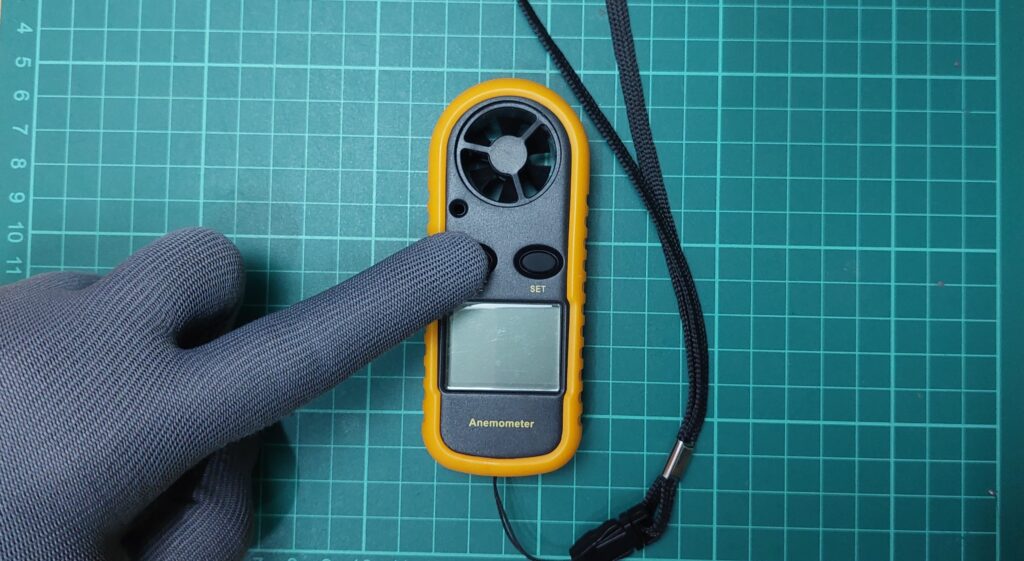

1. Press Mode button 2-3sec
2. Then display screen will turn On

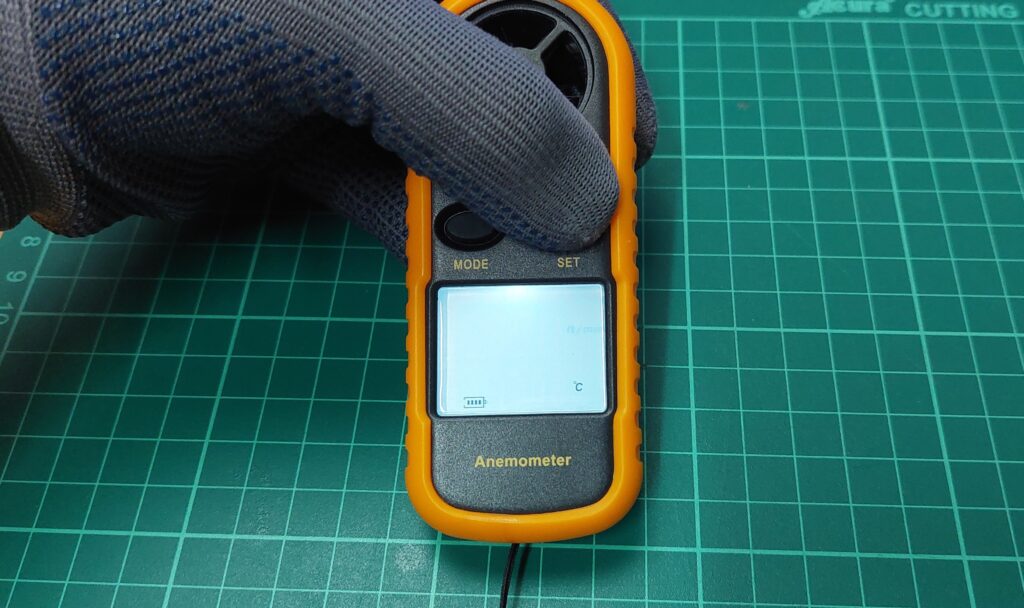

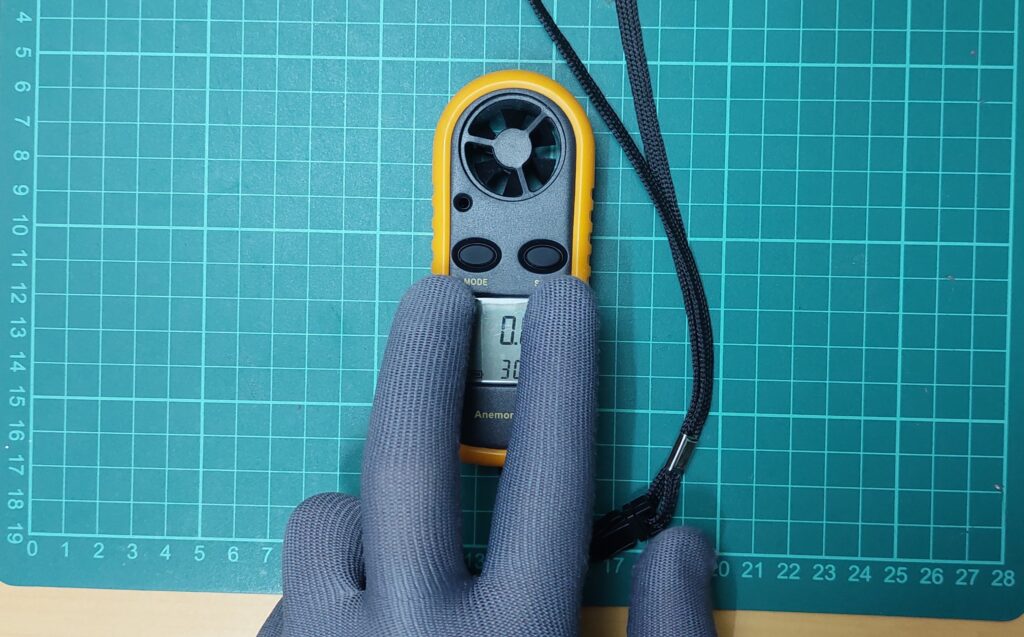

3. To turn Off press both Mode and Set button for 2-3sec
Pag naka-on yung instrument natin at gusto mo baguhin yung unit of air velocity nya press mode then select ka lang ng unit ng air velocity pagkatapos press set. May kasama itong manual pwede mo i-check yung ibang reading ng instrument natin para sa iyong kagustuhan. Salamat sa pag bisita sa website natin hangang sa muli.

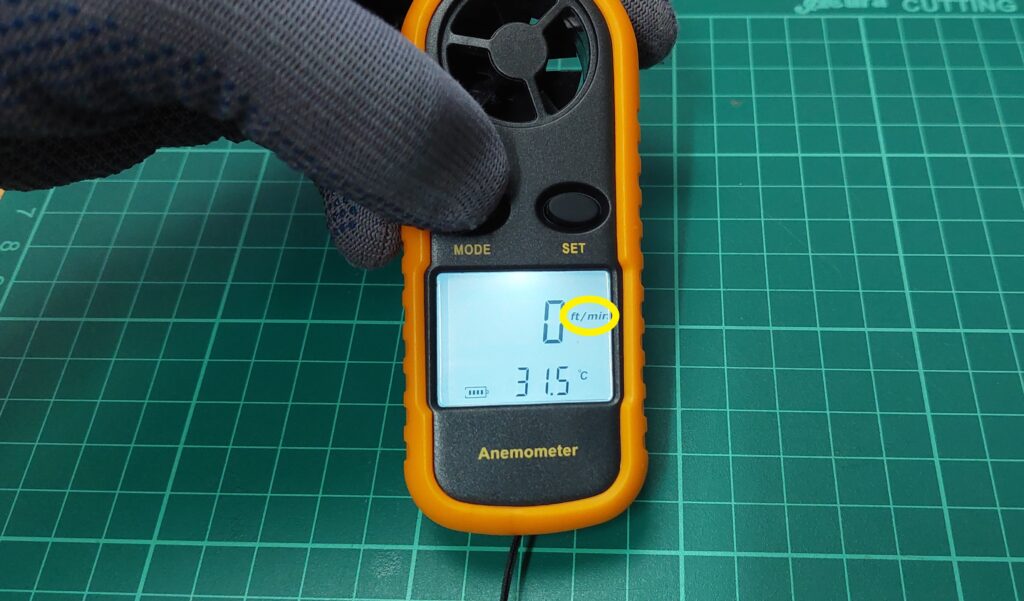

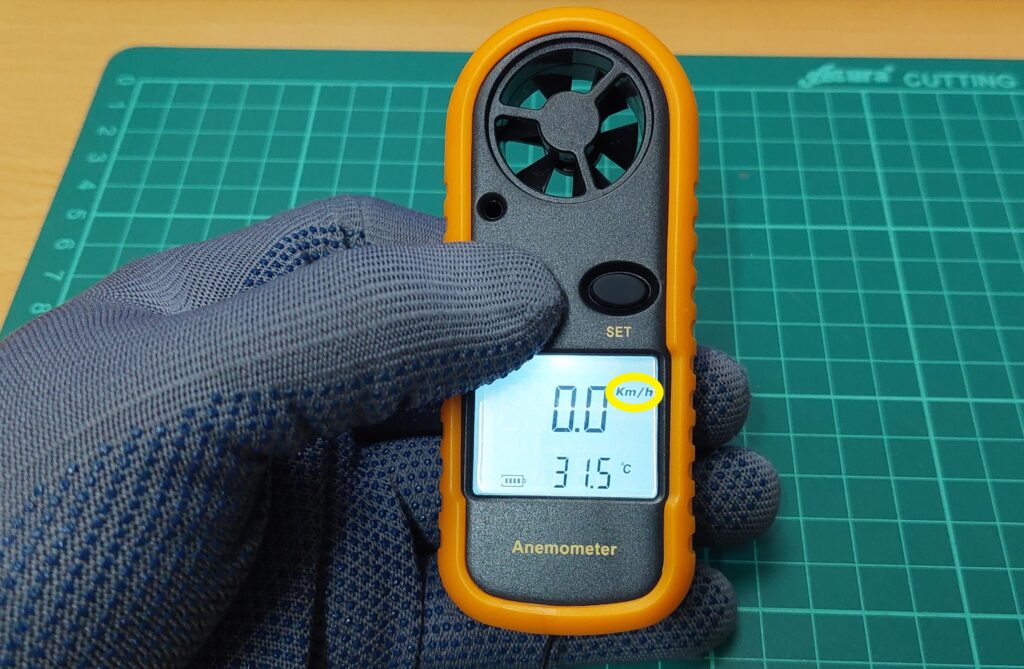

How to Change Unit of Air Velocity
1. Press Mode button for 2-3sec
2. The display is change now go to Set button
3. Press Set button to select your unit of air velocity
4. After you select your unit of air velocity Press Mode button, Done
How to Install CR2032 Battery

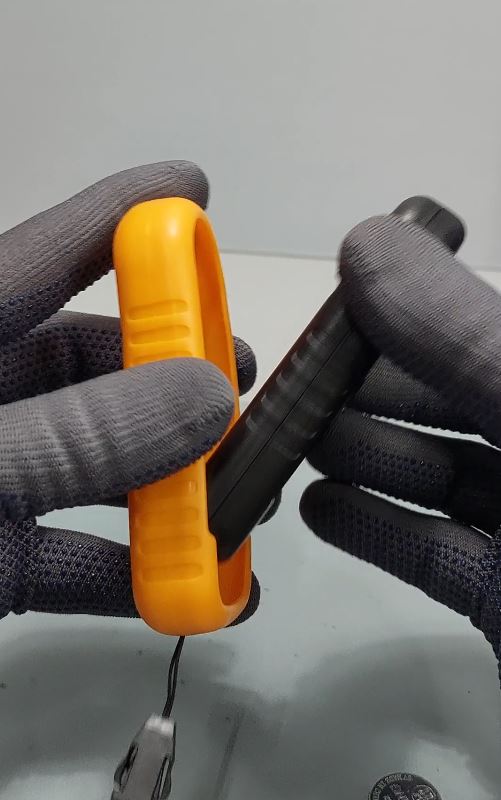

1. Remove the yellow cover

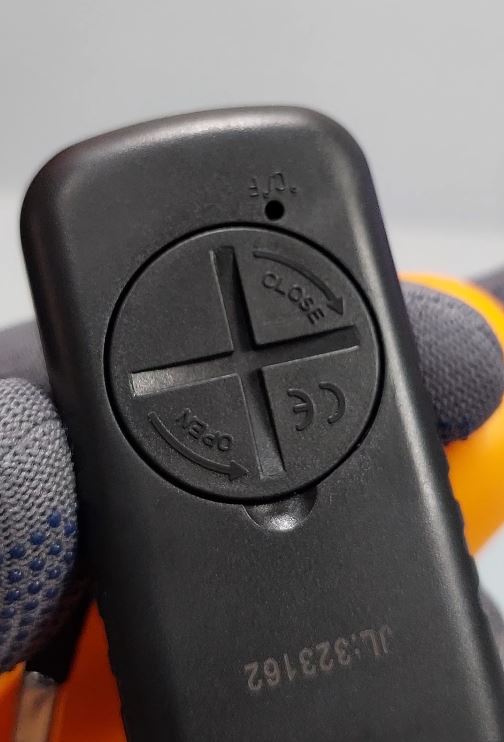

2. Unscrew counter clockwise using screw driver or small coins

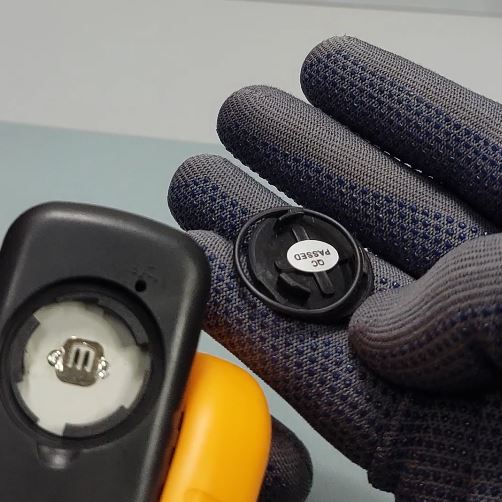

3. Battery cover and O-ring gasket inside
4. CR2032 Battery

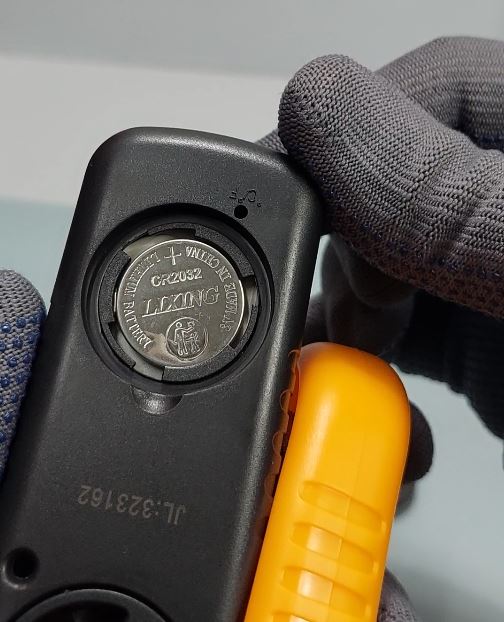

5. Place the battery inside

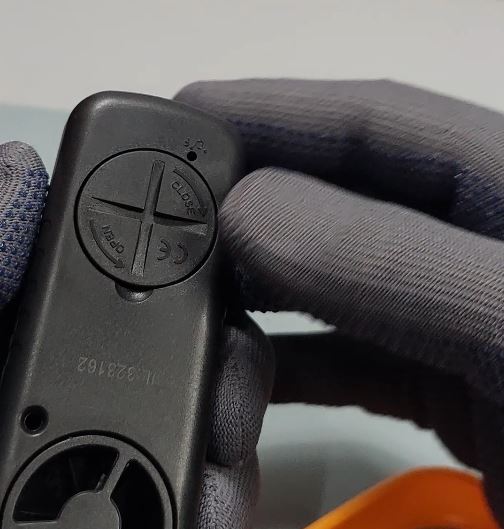

6. Close battery cover clockwise

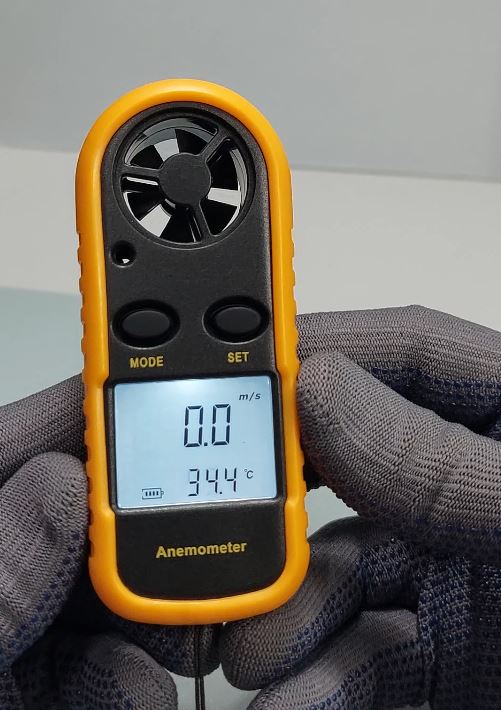

7. Press Mode button to power on, Done
